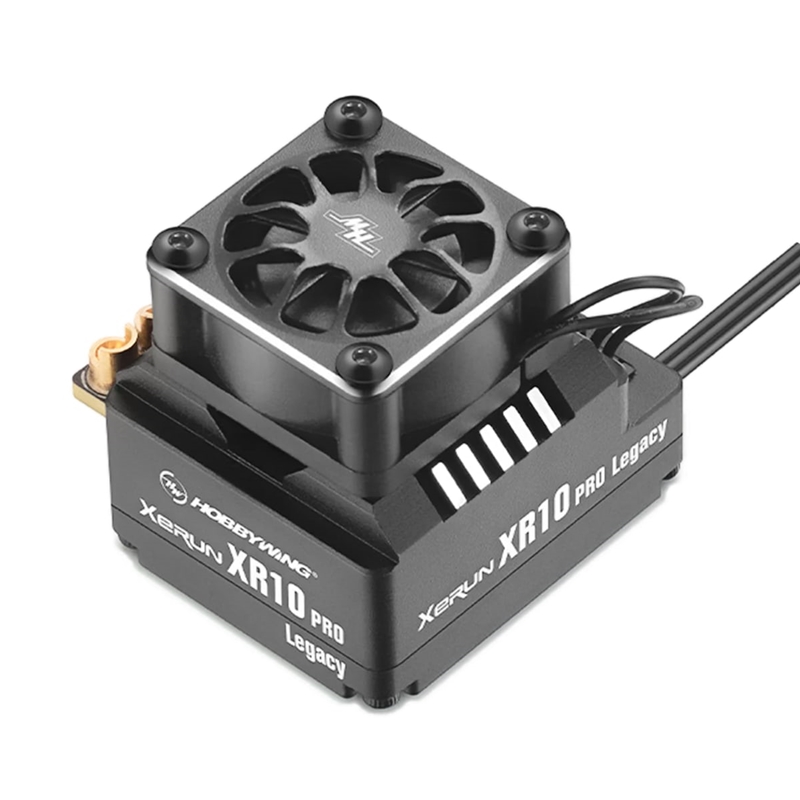

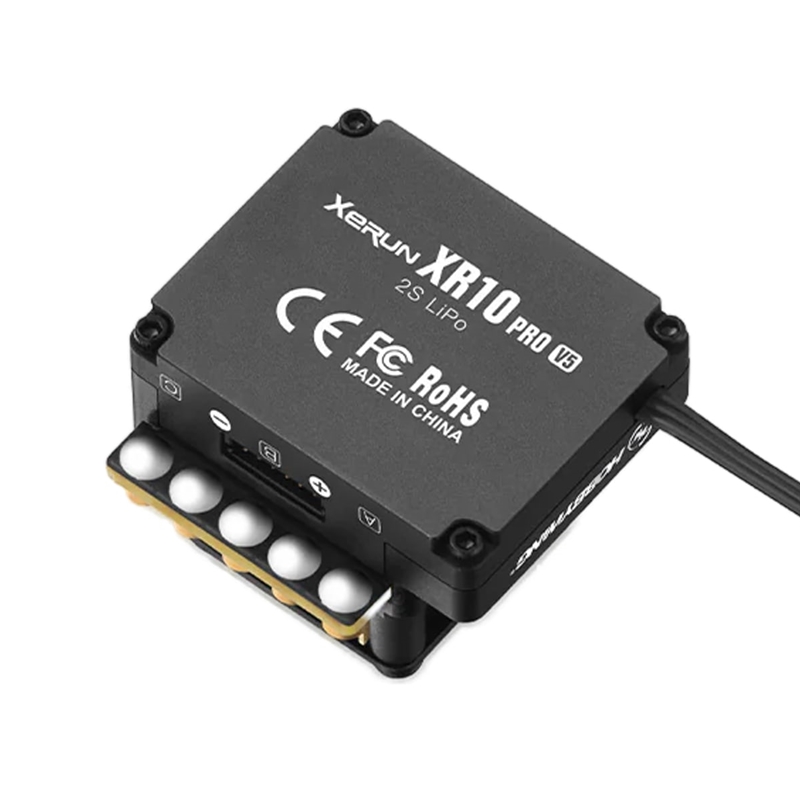

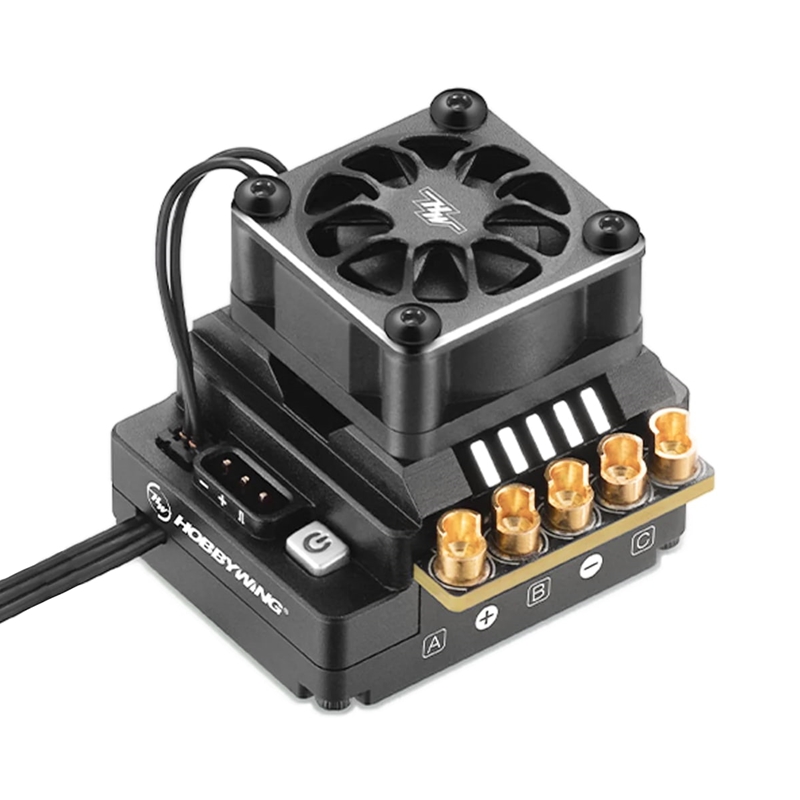

Hobbywing Xerun XR10 Pro Legacy 150A Sensored Brushless ESC

Built-in Reverse Polarity Protection
Equipped with a built-in reverse polarity protection circuit, the ESC offers worry-free operation by preventing damage from incorrect battery connections, ensuring reliability and peace of mind every time you power up.

Note: Full reverse polarity protection of the entire power system can only be achieved when using the optional non-polarized capacitor. The standard ESC is equipped with capacitor that is not protected against reverse polarity. If the battery is connected incorrectly, the capacitor may be damaged; however, the ESC itself will not be affected.

Competition-Ready, Driven by a Powerful Core
Powered by a 32-bit M4 processor, the ESC delivers lightning-fast response, and handles more data with precision. With the potential for continuous feature optimization and expansion, it combines pro-level racing hardware with advanced software to create the ultimate game-changer on track.

Smart Fan Circuitry
The Legacy now includes Smart Fan technology that runs the fan only when needed. This temperature controlled fan circuit prolongs fan life and improves overall performance.
Note: The intelligent fan start-stop function can be disabled through parameter settings.
Specifications:
Suggested Application 1/10 Touring Cars & Buggies
Motor Type Brushless - Sensored/Sensorless
Input Voltage 2S LiPo (Only)
Continuous Current 150A
Peak Current 1000A
Dimensions (LxWxH) 1.48x1.48x1.30in (37.7x37.7.6x33.2mm)
Weight 3.32oz (94.2g)
Motor Limits
Touring Car >4.5T
Buggy >5.5T
BEC Voltage 5-7.4V
BEC Continuous Current 5A
BEC Peak Current -
Motor Connector Solder
Battery Connector Solder
Programmable Yes, with OTA or LCD Program Box Pro**
*Tech Note: While the ESC provides Reverse Polarity Protection, the standard capacitor in the ESC does not offer reverse connection protection. Reverse connection of the battery will damage the capacitor.
**Tech Note: The OTA Programmer (HWA30850400) or LCD Program Box Pro (HWA30502002) is required to read the data. Data includes throttle, voltage, current, temperature, motor RPM, vehicle speed, and other relevant parameters.

Includes:
(1) Xerun XR10 Pro Legacy 1/10 150A Sensored Brushless ESC
(1) Cooling Fan
Factory Decals & Accessories
