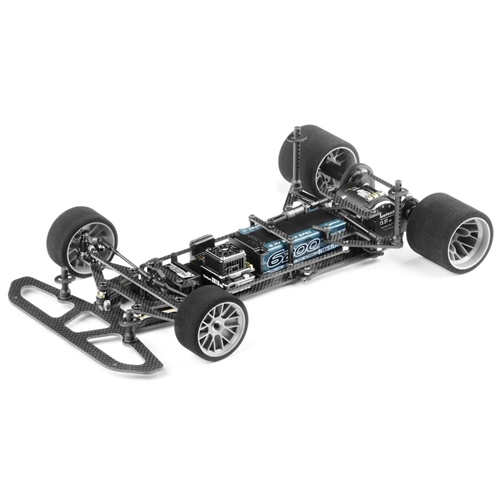

XRAY XP10 2026 1/10th Electric Pro 10 Pan Car Kit (235mm)
XRA370507
Race-ready XRAY XP10 '26 1/10 Pan Car Kit (235mm) features a tweak-free 2.5mm carbon fiber chassis, adjustable rear pod, and lightweight design for superior GT racing performance. Perfect for competitive RC racers.
Please note: Body, Battery, servo, ESC, servo saver and tires not included.XRAY X10'26 All-new Features
- One-piece chassis design for consistent handling in all conditions and superior tweak resistance Narrow chassis shape for minimum chassis drag during cornering
- Rear pod concept on top of chassis for minimum drag and superior tweak resistance
- Adjustable pod angle controlled by set screw at the rear of chassis for fine tuning
- Rear spring location for maximum forward traction with great adjustability and low CG
- Rear droop adjustment through rear bump spring tension. The spring sits in a special composite adjuster
- Universal rear spring nut holder works for both conical and linear springs
- 2-piece lower pod plate mounts to the bulkheads, offering droop and pod angle adjustments with support for the side springs Ultra-light, low CG bulkheads are foundation of the pod system
- Extra forward center pivot position for maximum adjustability
- Low pivot holder and small diameter pivot ball offer low roll center positions and great adjustment range
- Carbon Fiber top plate for center shock and side damper mountings
- Rear carbon side spring brace aligns with the pod geometry
- Composite bushings press into carbon fiber parts for secure and reliable hardware installation
- Center dampener with 1-hole piston provides exceptional bump handling, low maintenance, and maintains a low CG
- Aluminum lower arm pivot balls included in the kit for weight savings
- Thick carbon fiber shims included for the widest possible range of front ride height settings
- Hollow front kingpins improve lubrication and dampening of the front suspension
- Carbon fiber, floating servo holder included as option to the fixed chassis mounting
- Floating servo holder compatible with two servo sizes for different weight distributions
- Aluminum steering blocks with special Teflon insert for minimal friction and smooth movement
- Ackermann positions for optimal steering characteristics as well as optional eccentric axle with 1mm less trail for greater tunability
- Long, Steel steering link turnbuckles for maximum reliability on the wider XP10 platform
- 2.0mm side braces with a narrow width design save weight and leave space for electronics
- Side brace mounting posts uses M2.5 screws for weight savings
- Aluminum side link holders with 2-pin design for more rigidity and maximum tweak resistance
- 2-pin carbon fiber side link plates integrate with aluminum holders for reliable alignment and offer 2 side link front pivot mounting positions for maximum adjustability
- Battery backstop & chassis holes to accommodate for both standard shorty and mid size battery packs
- Center dampener holder features adjustable back stop shim & screw to perfectly set the play for the battery pack
- Wide rear wheel hubs for a wide range of track width adjustability and optimal clamping of rear axle
- Carbon Fiber front bumper aligns with chassis shape
