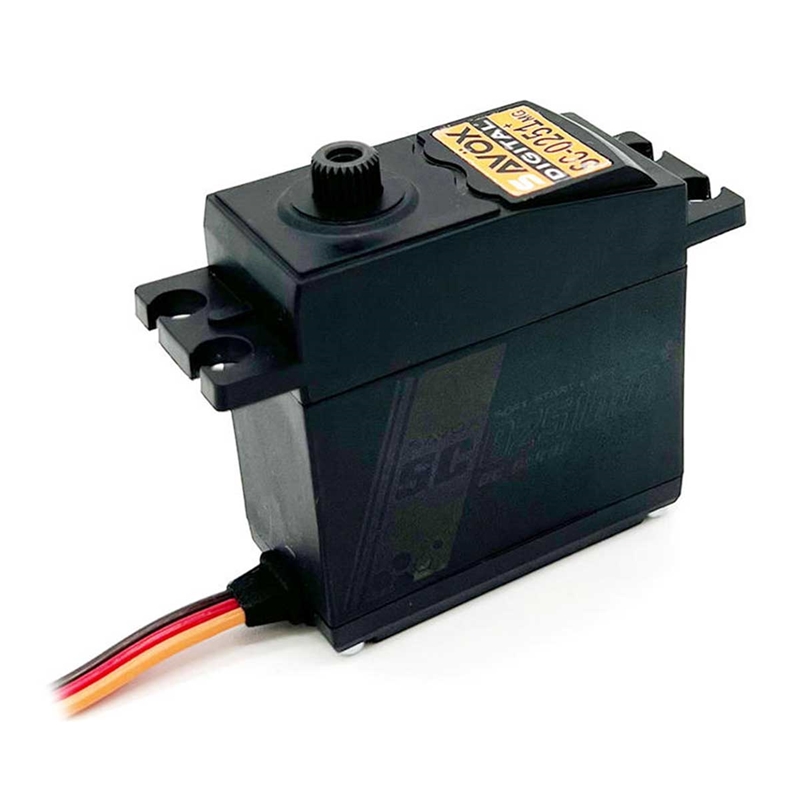

SAVOX SC-0251MGP Larger Standard Digital "High Torque" Metal Gear Servo

This servo is built to handle demanding control surfaces and steering loads without sacrificing smoothness or precision.
"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Note: This servo is taller than standard size servos. Please verify that the dimensions of this servo will suit your application prior to purchase.

High Torque Performance

The SC-0251MGP provides strong, consistent torque suitable for aircraft and 1/8 off-road platforms. Its digital circuitry helps deliver precise control, making it a dependable option for pilots and drivers who need responsive steering or surface actuation. This added torque capacity gives you confidence when managing high-stress maneuvers or heavier linkages.

Durable Metal Gear Train

A full metal gear train helps the servo withstand harsh use and high-load situations. This construction improves longevity and ensures smoother operation over time, even when used in demanding environments. The gears are engineered to resist wear, making them ideal for repeated cycles under stress. With this level of durability, the servo remains reliable across long sessions and varied conditions.

Case & Spline Design

The slightly taller case design offers additional internal strength while maintaining compatibility with many standard servo mounts. A 25-tooth output spline allows easy pairing with a wide range of servo horns and linkages. This combination of size and spline support makes the servo adaptable to many builds without requiring special hardware.

Features:

• Metal gear train for durability in harsh conditions
• Slightly taller case for added strength and cooling
• Soft Start functionality for smooth initial movements
• Sanwa SSR compatibility for faster response times
• Digital precision control for high accuracy
• Ideal for large aircraft and 1/8 off-road car applications
• High torque output suitable for heavy-duty tasks
• Sturdy construction for long-lasting performance

Specifications:

• Input Voltage: 4.8-6V
• Speed:
  • @4.8V: 0.20sec/60°
  • @6V: 0.18sec/60°
• Torque:
  • @4.8V: 180.5oz-in
  • @6V: 222.2oz-in
• Pulse/Frequency: -
• Motor Type: Brushed
• Output Shaft: 25T
• Gear Material: Metal
• Dimensions: 1.60x1.18x2.26in (40.7x20x42.4mm)
• Servo Lead Length: 11.81in (300mm)
• Weight: 2.15oz (61g)
